Solar Hybrid PV-Thermal Panel
Hybrid PVT

Solar Panel
SolarMaster Hybrid PTV Solar Panel
are suitable for both residential and commercial applications.
FEATURES
SolarMaster PVT Hybrid Solar Panel is a revolutionary product which simultaneous solar thermal and solar photovoltaic production. It can enhance the PV efficiency max 50%, and meanwhile produce hot water for commercial and residential use.  The design of PVT Solar Panel is the first type in China, with the following key features:
● Solar PV & Solar Thermal in one unit.

● Solar PV efficiency raise up 20%-50%.

● Extend the PV lifetime thanks to the unique internal cooling system.

● Hot water been produced at 40-70 C degrees.

● Simple structure, less maintaining.

● High wind load strength and High snow load strength.

● Easy installation.

PRODUCT DATA


Model PVT-545M
Lenghth 2256mm
Width 1133mm
PV Peak Output * 545W
Solar Thermal Peak Output 1436W
Gross Area 2.56m2
Number of Cells 144
Dimensions of the Cell
182*91mm
Front Glass
3.2mm Tempered
Framework
6005-T5 Aluminum Alloy

*Calculated at midday (trans IAM = 1), G=1000W/m2, ∆T (tm-ta)=0, Location is in Jinxing, China

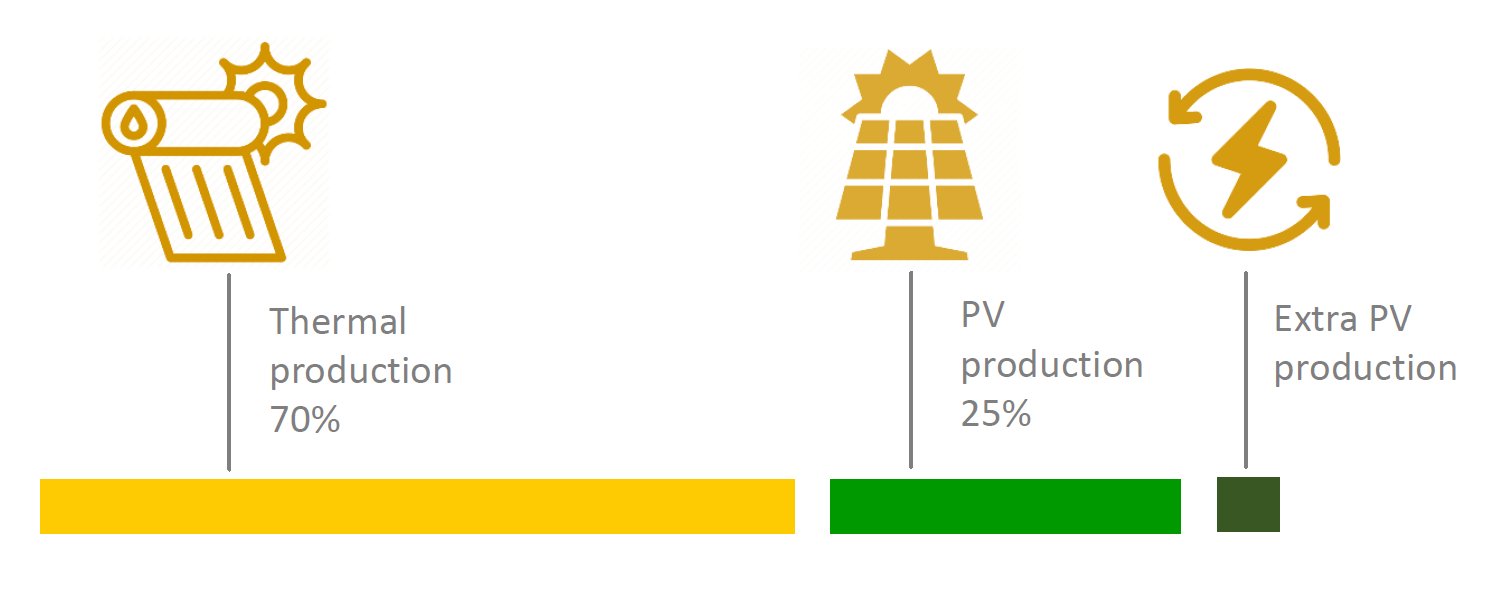

PVT Hybrid solar panel
with simultaneous thermal and photovoltaic production.

QQ截图20190830165559
2021-06-26 21.44.24
Inner Structure for Thermal Part
QQ截图20190821163249
The Effect of Temperature on Photovoltaic Cell Efficiency
solarefficiencywithheat_副本
Main Component

Specifications

Component
PV Specifications
Cell Type
Mono-crystalline / Poly
Power Rang
340W-545W
Maximum power voltage (Vmpp)
41.8V
Maximum power current (Impp)
13.04A
Open circuit voltage (Voc)
49.65V
Short circuit current (Isc)
13.92A
Module efficiency (%)
21.30%


Component
Thermal Specifications
Thermal Efficiency
70%
Coefficient of thermal losses, a1
3.2 W/m².K
Coefficient of thermal losses, a2
0.019 W/m².K²
Internal liquid capacitance
1.8L-2.3L
Stagnation temperature
150 C
Maximum permissible pressure
10 bar
Solar Thermal Peak Output
1436W at 545W PV Panel

APPLICATIONS
Our PVT Hybrid Solar Panel can supply you both electrical power and hot water.
And been used for different domestic and commercial applications.
