Hot Air Solar Collector
Best-Sale Hot Air Solar Collector-Solar Dryer-Solar Air Heating in the World
Hot Air
Solar Collector
SolarMaster SHA series of Hot Air solar collectors
are suitable for both residential and commercial applications.
FEATURES
SolarMaster SHA Hot Air Solar Collector is a revolutionary product which use the solar thermal energy for central heating, drying for agricultural products and foodstuffs, Industrial heating, school heating, house heating, etc. For both residential and commercial applications. The design of the Hot Air Solar Collector is the first type in the World which produce hot air instead of normal hot water, with the following key features:
● No water or liquid inside, no freeze, can work in cold area
● Solar thermal energy directly change into hot air, heat efficiency
up to 80%
● 1-2 Years investment back with small initial pay
● Extremely reliable design, endure high temp, no overheat
● Hot air with high temp. max to 200 C degrees
● Simple structure, less maintaining
● High wind load strength and High snow load strength
● Easy plug-in installation
PRODUCT DATA
| Model | SHA-50 | ||||
| Lenghth | 3850mm | ||||
| Width | 2008mm | ||||
| Peak Output * | 3342 W / 11406 Btuh | ||||
| Aperture Area | 4.70 m2 | ||||
| Gross Area | 7.86m2 | ||||
| Net Weight | 170KGS | ||||
|
Hot Air Temp.
|
Max to 200 C degrees (Adjustable from 20-200C degrees)
|
||||
|
Hot Air Volume
|
200m3/h
|
||||
|
Air Blower Power
|
90W | ||||
*Calculated at midday (trans IAM = 1), G=1000W/m2, ∆T (tm-ta)=0, Location is in Jinxing, China
HOW IT WOKRS
Construction
The SHA solar collector is comprised of Three main parts:
● Solar Collector
Absorbs solar energy and converts it to usable heat. Vacuum between the two glass layers insulates against heat loss. Distributing pipes are installed inside the vacuum glass tubes, to distribute the cold air into each glass tubes averagely, and been fully heated into hot air.
● Air Blower
90W special air blower for SHA solar collector which can produce hot air volume at 200m3/h.

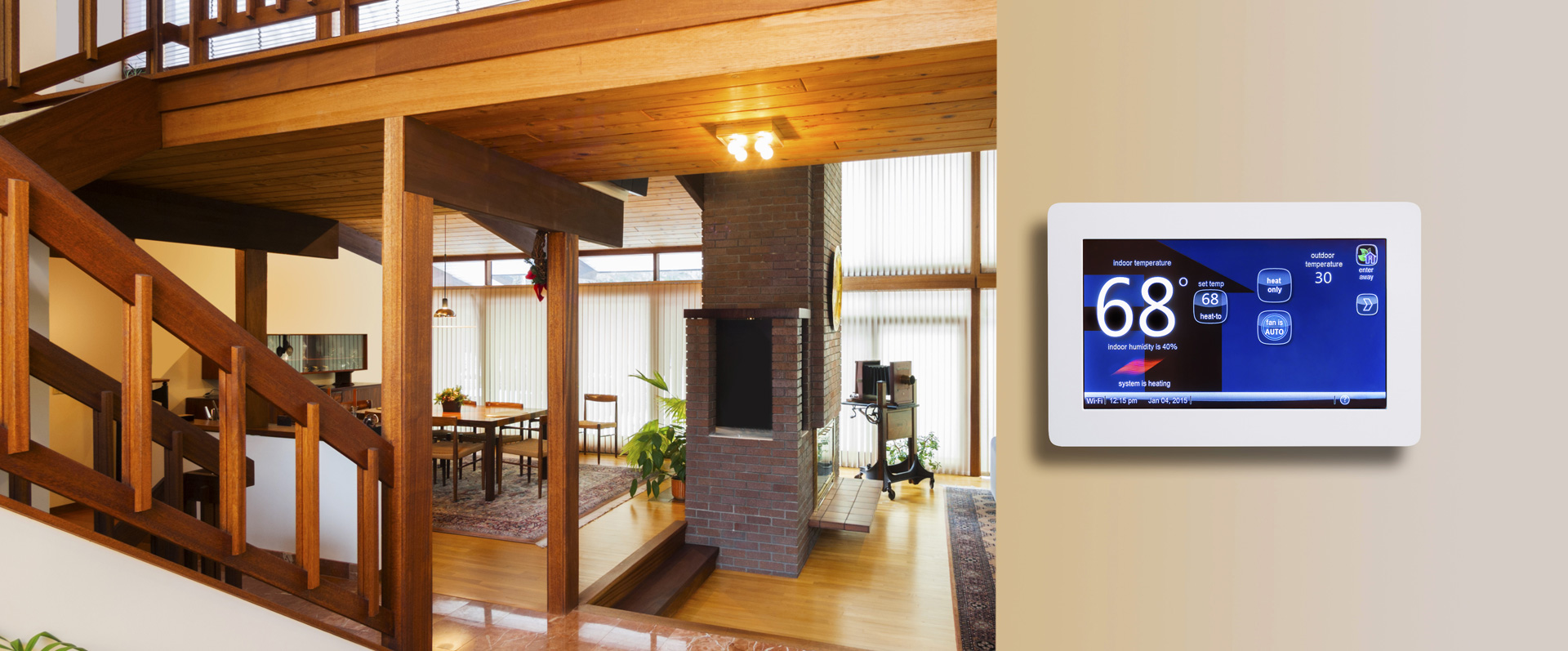

● Smart controller
Extremely reliable designed controller can sense the air temp outside and inside the room, and control the hot air temp from 20-200C degrees. And automatically start and stop the system by setting.
Main Component
Specifications
| Component |
Materials & Specifications
|
|
Evacuated Tubes
|
Material: Borosilicate 3.3
Tube style: Twin wall all glass
Dimensions: ∅58mm outer tube; ∅47mm inner tube; 1.8m length, 1.65mm outer tube wall thickness
|
|
Solar Absorber Coating
|
Material: Graded AL/N on AL
Absorptance: >92% (AM1.5);
Emittance: <8% (80C)
Vacuum: P<5x10-5 Pa;
Heat loss: <0.8W/(m2 C)
|
|
Distributing Pipe
|
Material: Borosilicate 3.3
Dimensions: ∅30mm outer tube; 1.65m length, 1.65mm outer tube wall thickness
|
|
Manifold Main Pipe
|
Material: Stainless steel 304-2B, thickness: 1.00mm
|
|
Mounting Frame
|
Material: Galvanized steel, 1.5mm thickness
|
|
Air Blower
|
Power: 90W, Air Volume: 200m3/h
|
|
Smart Controller
|
Sense the temp., and control the system automatically |
APPLICATIONS
Our Hot Air Solar Collector can be used for multiply applications for both residential and commercial.

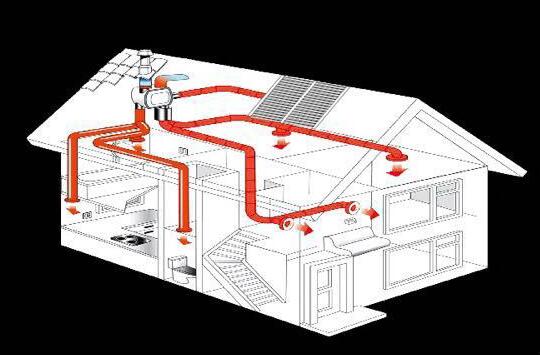

● House Air Heating
● Foodstuffs Drying
● Vegetable Drying
● Public Buildings Air Heating
● School Air Heating
● Planting Air Heating
