The SolarMaster solar panels offer maximum reliability and energy density for project planners and investors.
INTRODUCTION

SolarMaster Mono & Poly solar panels deliver efficient performance and long-lasting durability at a great value. Compared to other technologies, it converts the greatest percentage of sunlight into electricity. This means that over the lifetime of your system, you’ll generate more electricity and save more money on your electricity bills.

FEATURES
High Conversion Efficiency
Module efficiency up to 21.32% achieved through advanced cell technology and manufacturing capabilities.
Excellent Weak Light Perfermance
Excellent performance under low light conditions.
Positive Tolerance
Possitive tolerance of up to 0-3W delivers higher outputs reliability.
Current Sorting Process
System output maximized by reducing mismatch losses up to 2% with modules sorted & packaged by amperage.
Extended Wind & Snow Load Tests
Module certified to withstand extreme wind with 3800 Pascal and snow loads with 5400 Pascal.
Withstanding Harsh Environment
Reliable quality leads to a better sustainablity even in harsh environment like desert, farm and coastline.
Mechanical

Characteristics
Cell Type :
182*91mm, Mono, 144pcs in series

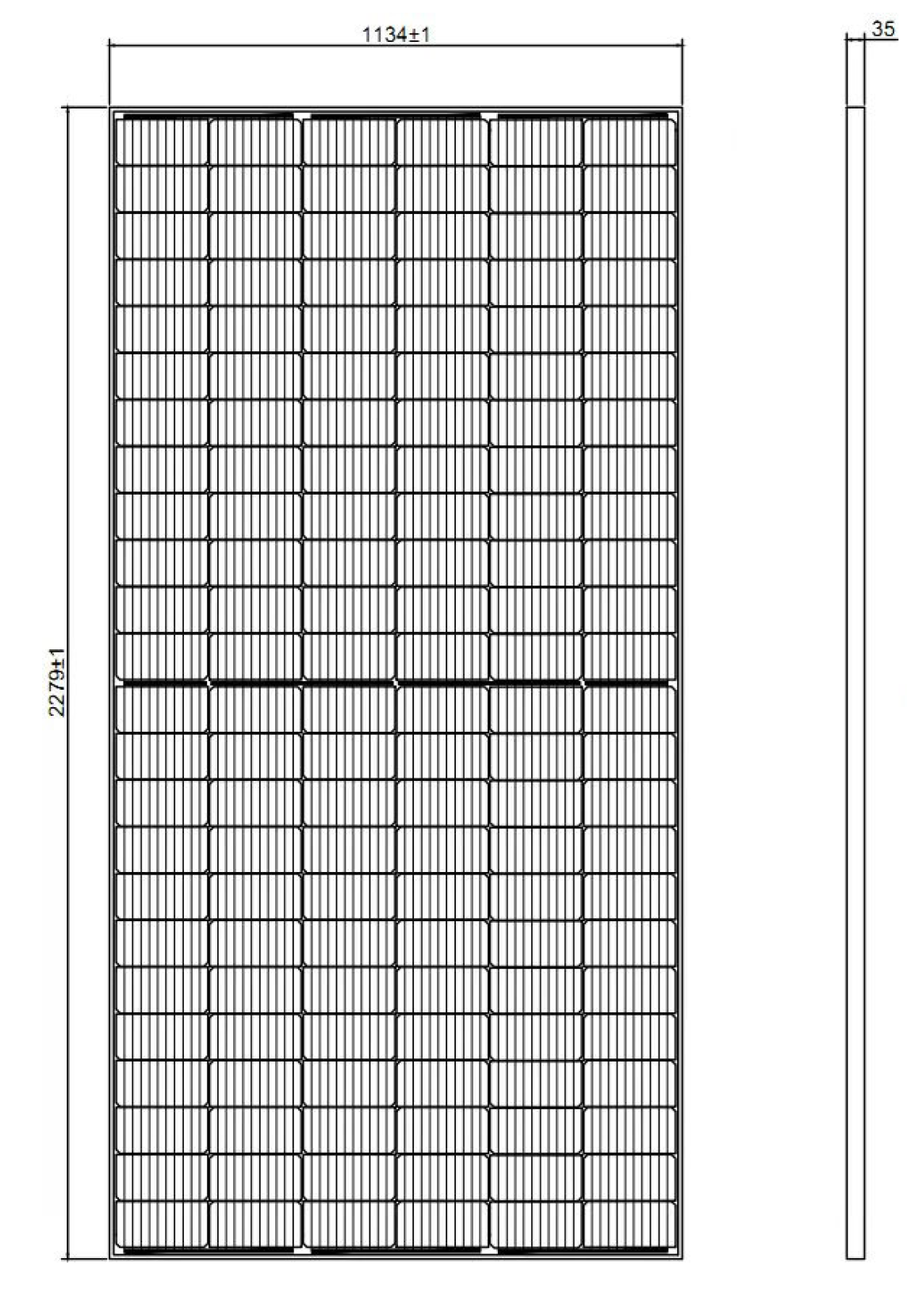

Demensions :
2279*1134*35mm
Weight :
27KGS
Front Cover :
3.2mm Tempered glass
Frame :
Anodized Aluminum Alloy
Junction Box :
IP67/IP68 Rated
Cable :
4mm2(EU) / 12AWG(US), 1200mm
WX20221031-154114@2x
WX20221031-154132@2x
COMMERCIAL PROJECTS
SolarMaster not only offer the residential Home PV systems, but also works for large commercial PV systems.

Looking for a high quality commercial solar PV system? Contact us today.
