Integrative Pressurized Solar Water Heater
Evacuated Tube Heat Pipe
Integrative Pressurized
Solar Water Heater

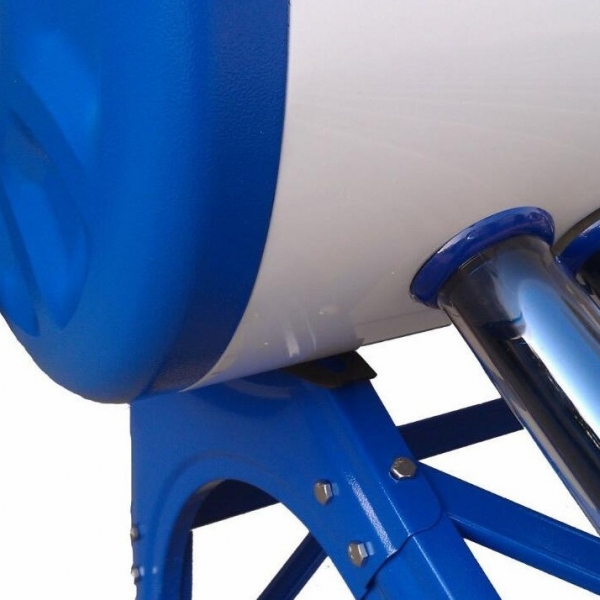

SolarMaster SIP series of Integrative Pressurized Solar Water Heater are suitable for both residential and commercial applications.
FEATURES
SolarMaster integrative pressurized system is a renovate model for the solar hot water, which adopts advanced heat pipe technology, combines heat pipe solar collector with pressurized tank to form a compact model.
● Hot water goes out with high pressure
● Completely automatic operation
● Work at pressure Max. to 6 Bar, connected directly with city water
● Combined the heat pipe technology, quickly start up
● No water inside the tubes, the system can still work even with several tubes breakage
● Anti-freezing, all-year-round service even in extremely cold area
● Gas or electrical boost options are available
● High wind load strength and High snow load strength
PRODUCT RANGE
SIP system are available from 100-360L sizes and have a number of options depending on the local market requirements.

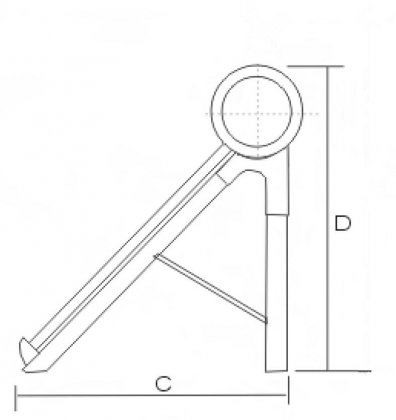

| Model | SIP-15 | SIP-20 | SIP-25 | SIP-30 |
| Size A | 1390mm | 1625mm | 2198mm | 2550mm |
| Size B | 1430mm | 1552mm | 1983mm | 2330mm |
| Size C | 1560mm | 1560mm | 1560mm | 1560mm |
| Size D | 1650mm | 1650mm | 1650mm | 1650mm |
|
Avilable Persons*
|
1 ~ 2 | 2 ~ 3 | 3 ~ 4 | 4 ~ 5 |
| Peak Output ** | 1009W | 1335W | 1667W | 2019W |
| Gross Area |
2.40 m2
|
3.17 m2 | 3.93 m2 | 4.70 m2 |
| System Capacity | 150 L | 200 L | 250 L | 300 L |
| Tube Quantity | 15 | 20 | 25 | 30 |
*The no. of available person is also depend on your local weather condition and if you also use for washing and floor heating
**Calculated at midday (trans IAM = 1), G=1000W/m2, ∆T (tm-ta)=0, Location is in Jinxing, China
How It Works
Construction
The SolarMaster Solar Water Heater is comprised of three main parts:
The SolarMaster Solar Water Heater is comprised of three main parts:
Evacuated Tube with Heat Pipe
Absorbs solar energy and converts it to usable heat. Vacuum between the two glass layers insulates against heat loss. Heat energy been transfered from glass tubes to the copper heat pipe, then to the inner tank.
Absorbs solar energy and converts it to usable heat. Vacuum between the two glass layers insulates against heat loss. Heat energy been transfered from glass tubes to the copper heat pipe, then to the inner tank.
Water Tanks
It stock the hot water from the glass tubes and heat pipe, and keep the heat.
It stock the hot water from the glass tubes and heat pipe, and keep the heat.
Mounting Frame
Strong and easy to install with various options to match different mounting methods.
Strong and easy to install with various options to match different mounting methods.

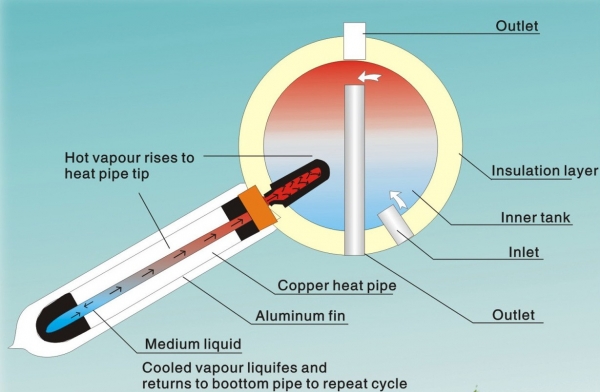

Operation
Step 1: The absorber coating on the inner glass tube absorbs sunlight and converts it into heat. Then the heat been transfered to the Aluminum fin and heat pipe, finally into the inner tank.
Step 2: The hot vapour inside the top of heat pipe, cold down by the cold water inside the inner tank, and become liquid and back to the bottom of heat pipe. And ready for a new circulation.
Step 3: The cold water go into the water tank through the cold water inlet, and push out the hot water inside the inner tank from the hot water outlet.
System structure
Main Component
Specifications
| Component |
Materials & Specifications
|
||||
|
Evacuated Tubes
|
Material: Borosilicate 3.3
Tube style: Twin wall all glass Dimensions: ∅58mm outer tube; ∅47mm inner tube; 1.8m length, 1.65mm outer tube wall thickness |
||||
|
Solar Absorber Coating
|
Material: Graded AL/N on AL
Absorptance: >92% (AM1.5); Emittance: <8% (80 C) Vacuum: P<5x10-5 Pa; Heat loss: <0.8W/(m2 C) |
||||
|
Water Tank
|
Outer Tank: Φ470mm, Stainless Steel 304-BA or 201-BA or Color Steel , 0.4mm thickness
Inner Tank: Φ360mm, Stainless Steel 304-2B or 316L, 1.5-2.0mm thickness
Insulation Layer: 55mm thickness, High density Polyurethane Foam from Germany
Operating temperature: 55-95 C
Lowest Startup temperature: -35 C
|
||||
| Rubber Components |
Material: HTV Silicone Rubber (UV stabilized)
|
||||
|
Mounting Frame
|
Material: Stainless Steel 304-BA or 201-BA or Aluminum alloy or Galvanised Steel
|
||||
| Heat Pipes |
Material: High purity “oxygen free” copper (ASTM: C10200; DIN: OF-Cu)
Heat transfer fluid: distilled water + special metal powder
Maximum heat transfer capacity: 220W / 750Btu
Operating angle: 20-80 Degrees
Startup temperature: ~30 C / 86 F
|
||||
