Split Pressurized Solar Water Heater
Evacuated Tube
Split Pressurized
Solar Water Heater
SolarMaster SSP series of Split Pressurized Solar Water Heater are suitable for both residential and commercial applications.
FEATURES
The design of the SSP Split Pressurized Solar Water Heater is a culmination of nearly 15 years of feedback from installers and solar professionals all over the world and aims to meet their requirements with the following key features:
● Solar collector and Water tank separated design
● Minimal impact on the aesthetics of your roofline
● No need to reinforce the roof structure
● Water tank capacity from 100-1000 litre
● Intelligent control and automatic operation
● Extreme cold resilience as low as to -35 C degrees
● Gas or electrical boost options are available
● High wind load strength and High snow load strength
● Multifunction: Bathing, Washing, Floor heating
PRODUCT RANGE
SSP system are available from 100-1000L sizes and have a number of options depending on the local market requirements.
| Model | Collector Quantity | Tank Capacity | Tank Coils | Working Station | Expansion Tank | Available Persons* |
| SSP-10 | 10 tubes * 1PC | 100 L | 0 or 1 or 2 | SR961S | 5 L | 1 ~ 2 |
| SSP-15 | 15 tubes * 1PC | 150 L | 0 or 1 or 2 | SR961S | 5 L | 2 ~ 3 |
| SSP-20 | 20 tubes * 1PC | 200 L | 0 or 1 or 2 | SR961S | 5 L | 3 ~ 4 |
| SSP-25 | 25 tubes * 1PC | 250 L | 0 or 1 or 2 | SR961S | 8 L | 4 ~ 5 |
| SSP-30 |
30 tubes * 1PC
|
300 L | 0 or 1 or 2 | SR961S | 8 L | 5 ~ 6 |
| SSP-40 | 20 tubes * 2PCS | 400 L | 0 or 1 or 2 | SR961S | 12 L | 6 ~ 7 |
| SSP-50 | 25 tubes * 2PCS | 500 L | 0 or 1 or 2 | SR961S | 18 L | 7 ~ 8 |
| SSP-100 | 25 tubes * 4PCS | 1000 L | 0 or 1 or 2 | SR961S | 25 L | 12 ~15 |
* The no. of available person is also depend on your local weather condition and if you also use for washing and floor heating.
How It Works
Step 1:
Solar Collector absorbs solar radiation and converts radiation to heat.
Step 2:
Heat transfer fliud from the collector moves heat to the heat exchanger in the solar water tank.
Step 3:
Tank supplies hot water for use throughout the building.
Step 4:
The cool water transfer fluid is pumped back to the collectors to be reheated.

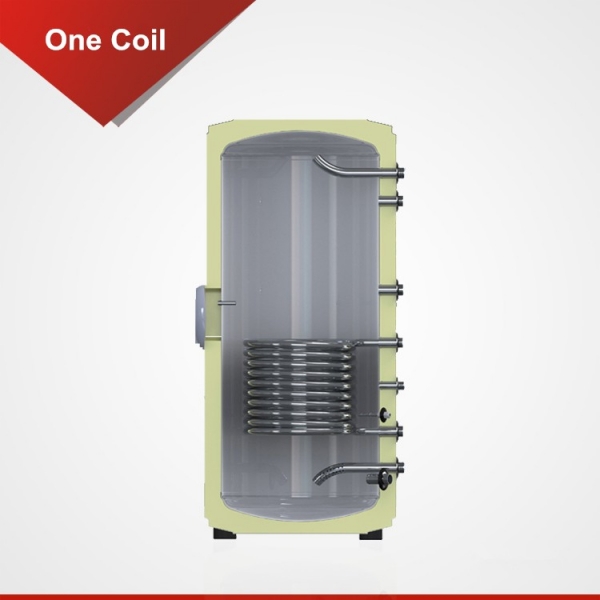

Tank Structure
Water Tank
Specifications
| Tank Capacity |
Insulation Layer
|
Outer Tank | Inner Tank | Tank Size | Packing Size |
|
100 L
|
High Density Polyurethane
Thickness: 50mm
|
Dia: Φ470mm
Color Steel Plate
Thickness: 0.5mm
|
Dia: Φ370mm
SUS304-2B
Thickness: 1.0mm
|
Φ470mm * 1060mm | 1142*560*560mm |
|
150 L
|
High Density Polyurethane
Thickness: 50mm
|
Dia: Φ470mm
Color Steel Plate
Thickness: 0.5mm
|
Dia: Φ370mm
SUS304-2B
Thickness: 1.2mm
|
Φ470mm * 1450mm | 1520*560*560mm |
|
200 L
|
High Density Polyurethane
Thickness: 50mm
|
Dia: Φ550mm
Color Steel Plate
Thickness: 0.5mm
|
Dia: Φ450mm
SUS304-2B
Thickness: 1.5mm
|
Φ550mm * 1340mm | 1440*630*630mm |
| 250 L |
High Density Polyurethane
Thickness: 50mm
|
Dia: Φ580mm
Color Steel Plate
Thickness: 0.5mm
|
Dia: Φ480mm
SUS304-2B
Thickness: 1.5mm
|
Φ580mm * 1450mm | 1540*675*675mm |
|
300 L
|
High Density Polyurethane
Thickness: 50mm
|
Dia: Φ580mm
Color Steel Plate
Thickness: 0.5mm
|
Dia: Φ480mm
SUS304-2B
Thickness: 1.5mm
|
Φ580mm * 1700mm | 1770*675*675mm |
|
400 L
|
High Density Polyurethane
Thickness: 60mm
|
Dia: Φ700mm
Color Steel Plate
Thickness: 0.5mm
|
Dia: Φ580mm
SUS304-2B
Thickness: 2.0mm
|
Φ700mm * 1560mm | 1660*770*770mm |
|
500 L
|
High Density Polyurethane
Thickness: 60mm
|
Dia: Φ700mm
Color Steel Plate
Thickness: 0.5mm
|
Dia: Φ580mm
SUS304-2B
Thickness: 2.0mm
|
Φ700mm * 1890mm | 1970*770*770mm |
|
1000 L
|
High Density Polyurethane
Thickness: 100mm
|
Dia: Φ1000mm
Color Steel Plate
Thickness: 0.5mm
|
Dia: Φ800mm
SUS304-2B
Thickness: 2.5mm
|
Φ1000mm * 2100mm | 2300*1100*1100mm |
