Flat Plate Solar Water Heater
Flat Plate
Solar Water Heater
SolarMaster Flat Plate Solar Water Heaters
are suitable for both residential and commercial applications.
FEATURES
The design of the Flat Plate Solar Water Heater is a culmination of nearly 15 years of feedback from installers and solar professionals all
over the world and aims to meet their requirements with the following key features:
●Easy and Safety Packing design (Tank, frame and Flat plate collector in separate packages)
● Top Color Steel for Outer tank, Stainless Steel 304-2B for inner tank
● Galvanized Steel with oil printing mounting frames
● Extremely reliable Tank design, less brazing points
● High efficiency Germany Tinox energy AL solar absorber
● Ultra lightweight top quality rock wool insulation
● UV stabilized components
● High tensile grade 6063-T5 black anodized aluminum body
● High transparency solar glass
PRODUCT RANGE
SHC collectors are available in 10 to 30 tube sizes and have a number of options depending on the local market requirements.


Model SNP-FC-150 SNP-FC-300 SIP-FC-150 SIP-FC-300
Collector Lenghth 2000mm  2000mm  2000mm  2000mm
Collector Height 1000mm 1000mm 1000mm 1000mm
Collector Width 80mm 80mm 80mm 80mm
Tank Length 1100mm 2150mm 1100mm 2150mm
Collector Quantity 1 PC 2 PCS 1 PC 2 PCS
Peak Output * 1706W / 5820 Btuh 3412W / 11640 Btuh 1706W / 5820 Btuh 3412W / 11640 Btuh
Gross Area
2.00 m2
4.00 m2 2.00 m2 4.00 m2
System Capacity 150 L 300 L 150 L 300 L
System Type Non-pressure Non-pressure  Pressurized Pressuirzed

*Calculated at midday (trans IAM = 1), G=1000W/m2, ∆T (tm-ta)=0, Location is in Jinxing, China
How It Works

Construction
The Flat Plate Solar Water Heater is comprised of three main parts:
Pressurized Flat Plate Solar Collector
Absorbs solar energy and converts it to usable heat. The header and riser pipes are brazed together to form a harp shaped heat exchanger that the solar system heat transfer fluid circulates through.
Water Tank
It stock the hot water from the Flat plate collector, and keep the heat.
2015060609402462
Mounting Frame
Strong and easy to install with various options to match different mounting methods.
R-SolarWaterHeaterSystem-slide_副本

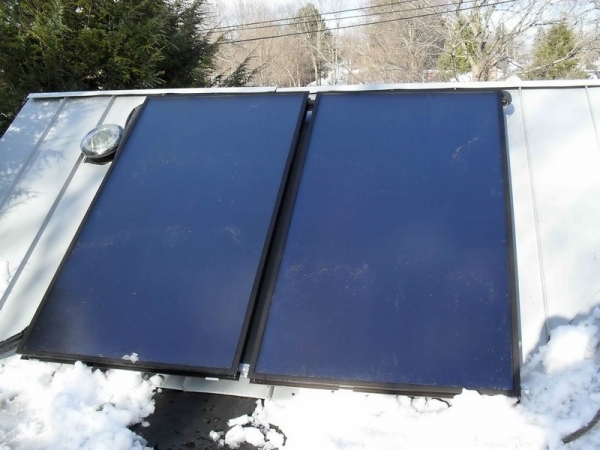

Snow & Wind Loading
SolarMaster Solar Water Heaters are rated for up to 298kg/m2    /  62lbs/ft2 snow loading.  The roof and attachment points must also be suitably rated.


Mounting frames are available for the SolarMaster Solar Water Heater that can withstand category C cyclonic winds (250km/h / 159mph).  For such conditions there are specific requirements that must be observed.
Solar thermal collectors - Sunlightsolar dot com
Main Component

Specifications

Component
Materials & Specifications
Evacuated Tubes
Material: Borosilicate 3.3
Tube style: Twin wall all glass
Dimensions: ∅58mm outer tube; ∅47mm inner tube;  1.8m length, 1.65mm outer tube wall thickness
Solar Absorber Coating
Material: Graded AL/N on AL
Absorptance: >92% (AM1.5);
Emittance: <8% (80 C)
Vacuum: P<5x10-5 Pa;
Heat loss: <0.8W/(m2 C)
Heat Pipes
Material: High purity “oxygen free” copper (ASTM: C10200; DIN: OF-Cu)
Heat transfer fluid: distilled water + special metal powder
Maximum heat transfer capacity: 220W / 750Btu
Operating angle: 20-80 Degrees
Startup temperature: ~30 C / 86 F
Copper Header Pipe
Material: Copper (ASTM: C1100, DIN: ECu-58); Potable water rated.
Brazing rod material: BAg45CuZn          Maximum pressure: 800kPa
Connection options: 22mm OD copper
Heat Transfer Fins
Material:  High purity aluminum
Rubber Components
Material: HTV Silicone Rubber (UV stabilized)
Mounting Frame
Material: 6005-T5 Aluminum Alloy
Manifold Casing
Material: 3A21 Aluminum with Anodized or Powder Coated Finish
Manifold Insulation
Material: Glass Wool (K = 0.043W/mK)
Thickness: Average >50mm

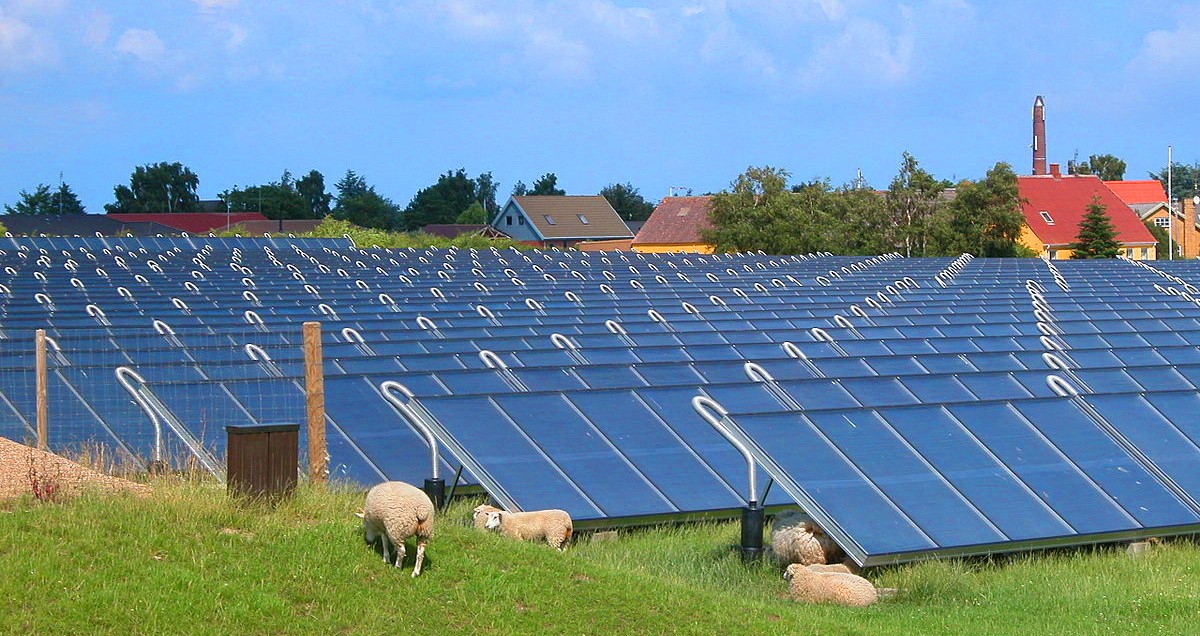

1200px-Marstal.powerplant.1
