Non-Pressure Solar Collector
Evacuated Tube
Non-Pressure
Solar Collector

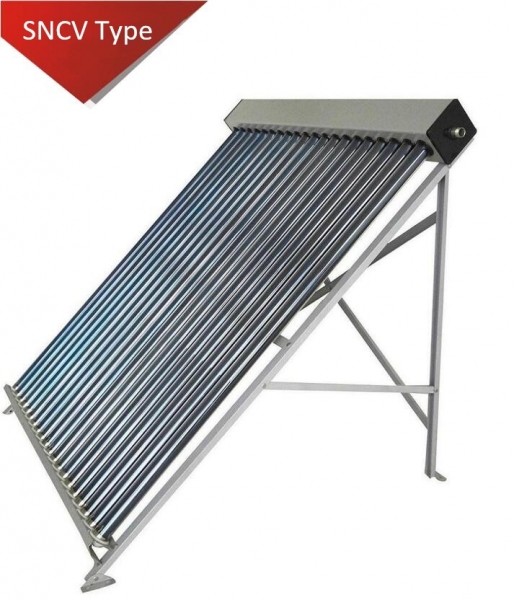

SolarMaster SNC series of evacuated tube solar collectors
are suitable for both residential and commercial applications.
FEATURES
The design of the SNC solar collector is a culmination of nearly
15 years of feedback from installers and solar professionals all
over the world and aims to meet their requirements with the
following key features:
● Easy and Safety Packing design
● Stainless Steel 304-2B or 316L for inner manifold
● Zinc-Coated Galvanized Steel frames
● Extremely reliable inner manifold design, less soldering points
● All glass tubes have three absorb coatings with high heat efficiency
● Extreme High density Polyurethane Foam from Europe for insulation layer
● UV stabilized components
● High wind load strength and High snow load strength
● Easy plug-in installation
PRODUCT RANGE
SNC collectors are available in 15 to 50 tube sizes and have a number of options depending on the local market requirements.
| Model | SNCV-15 | SNCV-20 | SNCV-30 | SNCH-40 | SNCH-50 |
| Lenghth | 2030mm | 3850mm | |||
| Width | 1175mm | 1550mm | 2330mm | 1550mm | 1950mm |
| Collector Type | Vertical | Vertical | Vertical | Horizontal | Horizontal |
| Peak Output * | 1019W | 1339W | 2021W | 2678W | 3342W |
| Aperture Area |
1.41 m2
|
1.88 m2 | 2.82 m2 | 3.76 m2 | 4.70 m2 |
| Gross Area | 2.40 m2 | 3.17 m2 | 4.80 m2 | 6.34 m2 | 7.86 m2 |
*Calculated at midday (trans IAM = 1), G=1000W/m2, ∆T (tm-ta)=0, Location is in Jinxing, China
How It Works
Construction
The SNC solar collector is comprised of three main parts:
Evacuated Tube
Absorbs solar energy and converts it to usable heat. Vacuum between the two glass layers insulates against heat loss.
Manifold
Insulated box containing the stainless steel inner shell and with the extreme high density Polyurethane foam for keeping the hot water. The header with well design for glass tubes plug into.
Mounting Frame
Strong and easy to install with various options to match different mounting methods.
Operation
Step 1: The absorber coating on the inner glass tube absorbs sunlight and converts it into heat.
Step 2: The cold water inside the inner tubes be heated and become hot water even to steam. The new cold water will go down and hot water will go up automatically.
Step 3: A pump circulates water or heat transfer fluid through the manifold, carrying heat back to the storage tank. Gradually throughout the day the tank is heated up.
Main Component
Specifications
| Component |
Materials & Specifications
|
|
Evacuated Tubes
|
Material: Borosilicate 3.3
Tube style: Twin wall all glass
Dimensions: ∅58mm outer tube; ∅47mm inner tube; 1.8m length, 1.65mm outer tube wall thickness
|
|
Solar Absorber Coating
|
Material: Graded AL/N on AL
Absorptance: >92% (AM1.5);
Emittance: <8% (80 C)
Vacuum: P<5x10-5 Pa;
Heat loss: <0.8W/(m2 C)
|
|
Manifold
|
Outer Shell: Color Painted steel (standard) or Stainless Steel (optional) , 0.5mm thickness
Inner Shell: Stainless Steel 304-2B (standard) or 316L (optional) , 0.5mm thickness
Insulation Layer: Extreme High density Polyurethane Foam from Europe
Operating angle: 15-80 Degrees
Startup temperature: 0 C Degrees
|
|
Rubber Components
|
Material: HTV Silicone Rubber (UV stabilized)
|
|
Mounting Frame
|
Material: Zinc-Coated Galvanized Steel (standard) or Aluminum ally (optional) or Stainless Steel (optional)
|
