Solar Working Stations
Intelligent
Solar Working

Stations
SolarMaster Working Stations are suitable for both residential and commercial applications.
FEATURES
Suitable for Split and Pressure system, which set the flow control, heat cycle, the exhaust, pressure control, temperature display, the transfer liquid injection / discharge ,etc, Such multi-functional in one compact package of components, it have the features of easy-to-use and installation, its material and operating characteristics to take into account long time of collector in high temperature and other characteristics of the system.
MAIN TECHNICAL DATA
 TECHNICAL  DATA

Dimension:  420mm*280mm*155mm
Power  supply:200V-240V  AC  or  100V-130V  AC50-60Hz.  .
Power  consumption:  < 3W
Accuracy of temperature measuring: ± 2oC
Range of collector temperature measuring: -10oC ~200oC
Range of tank temperature measuring: 0oC ~100oC
Suitable power of pump: 2 pumps possible to be connected power of each pump < 200W .
Suitable power electrical heating:1 relay for 1500W(1500w-4000w must be use SR802)
Inputs: 5sensors
1pcs*Pt1000 sensor (≤500oC) for collector (silicon cable≤280oC)
4pcs*NTC10K B3950 sensor (≤ 135oC) for tank (PVC cable ≤105oC)
Outputs:3 relays for circulation pumps or 3-way electromagnetic valve
Ambient temperature:-10oC ~ 50oC.
Water proof grade: IP42.

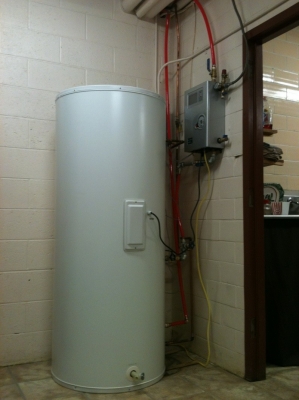

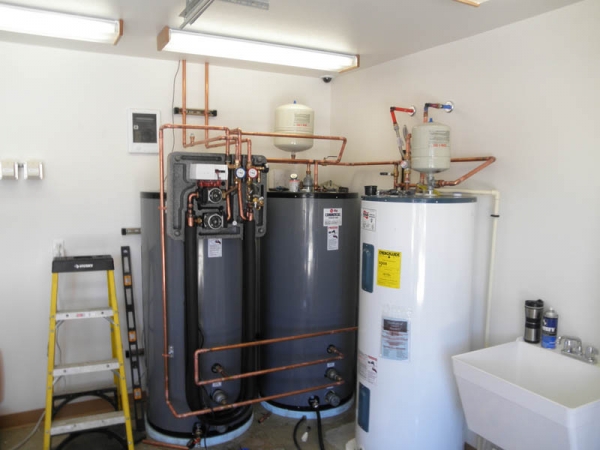

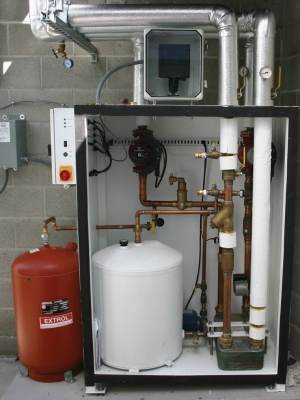

APPLICATIONS
SolarMaster Solar Working Stations can be used for different applications.

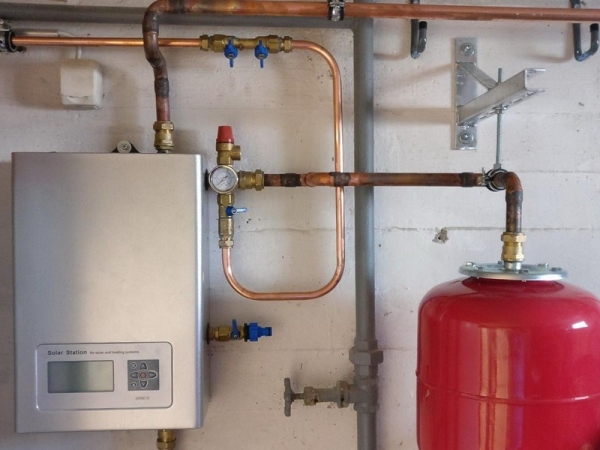

SYSTEM CONNECTION
